- Pan and Tilt Camera and a Lateral Inspection Camera
• Pan and tilt inspection of mainline with simultaneous inspection of lateral service
• Pan and tilt inspection of 6" through 30" diameter mainlines
• Lateral inspection of 2" through 6" diameter services
• Both camera dimensions = 1.5" diameter x 3.5" length

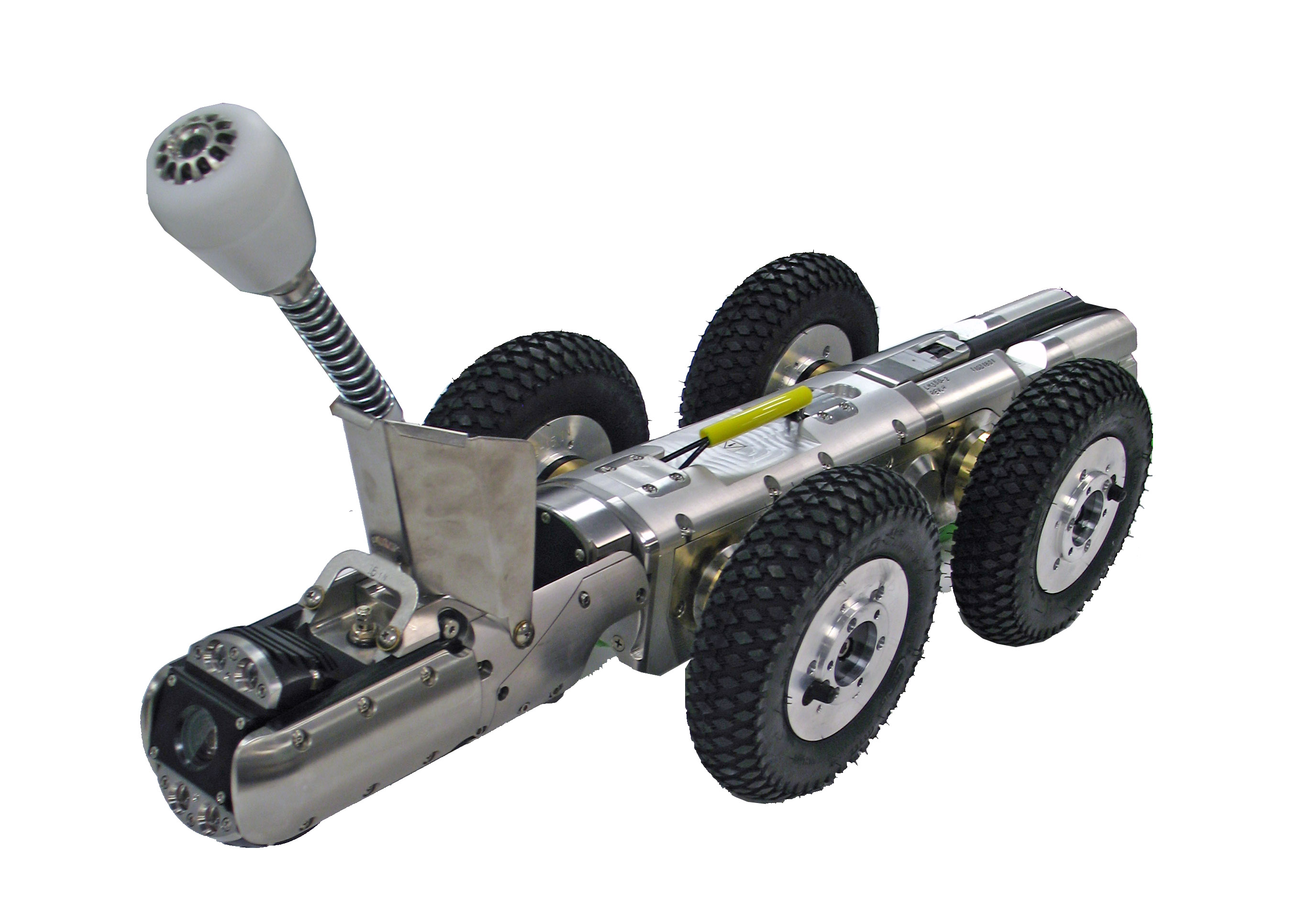

• Camera centering ball for lateral camera;maximizes protection and passage
• White LED lighting for both cameras, life expectancy rated at 5000 hours

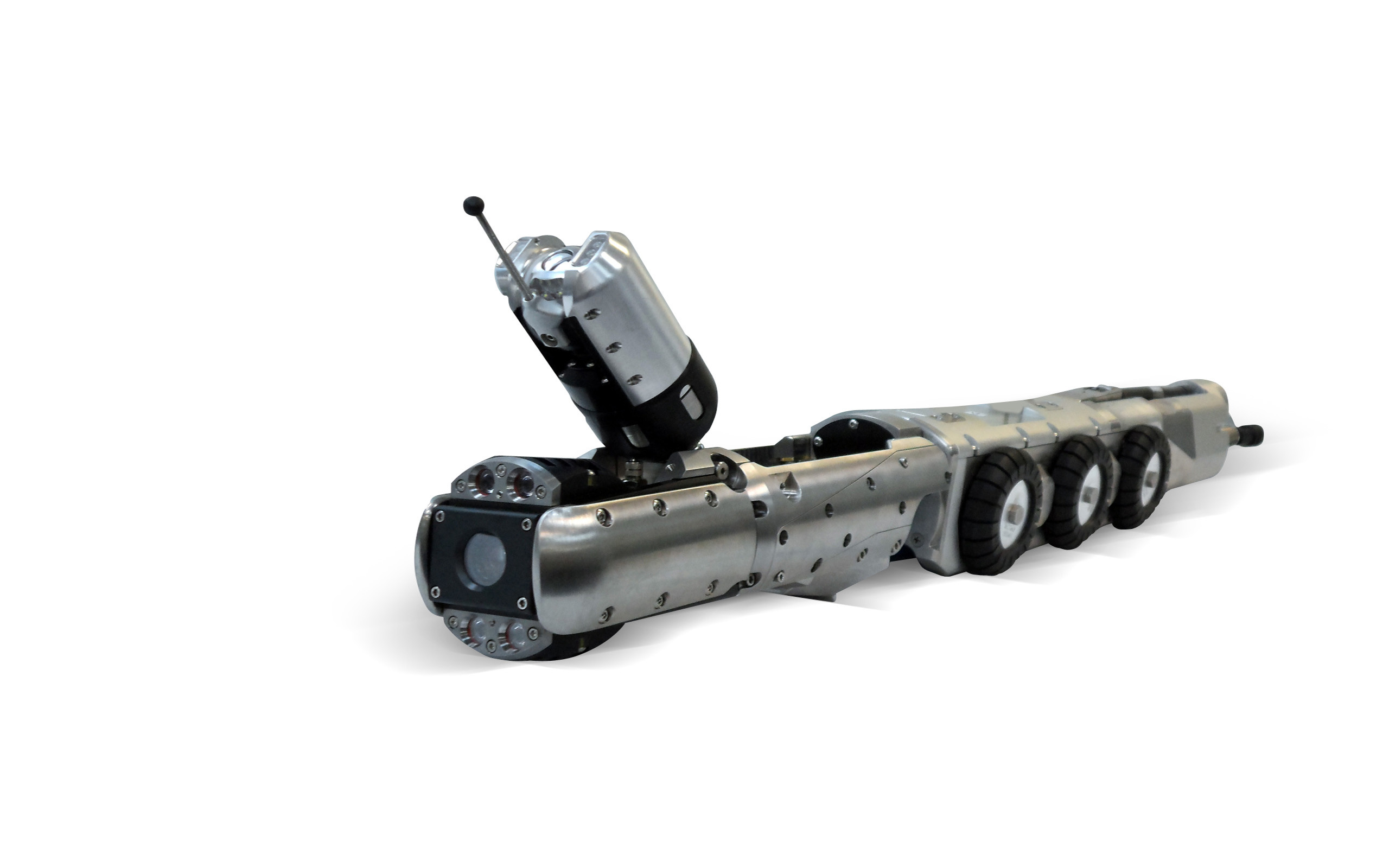

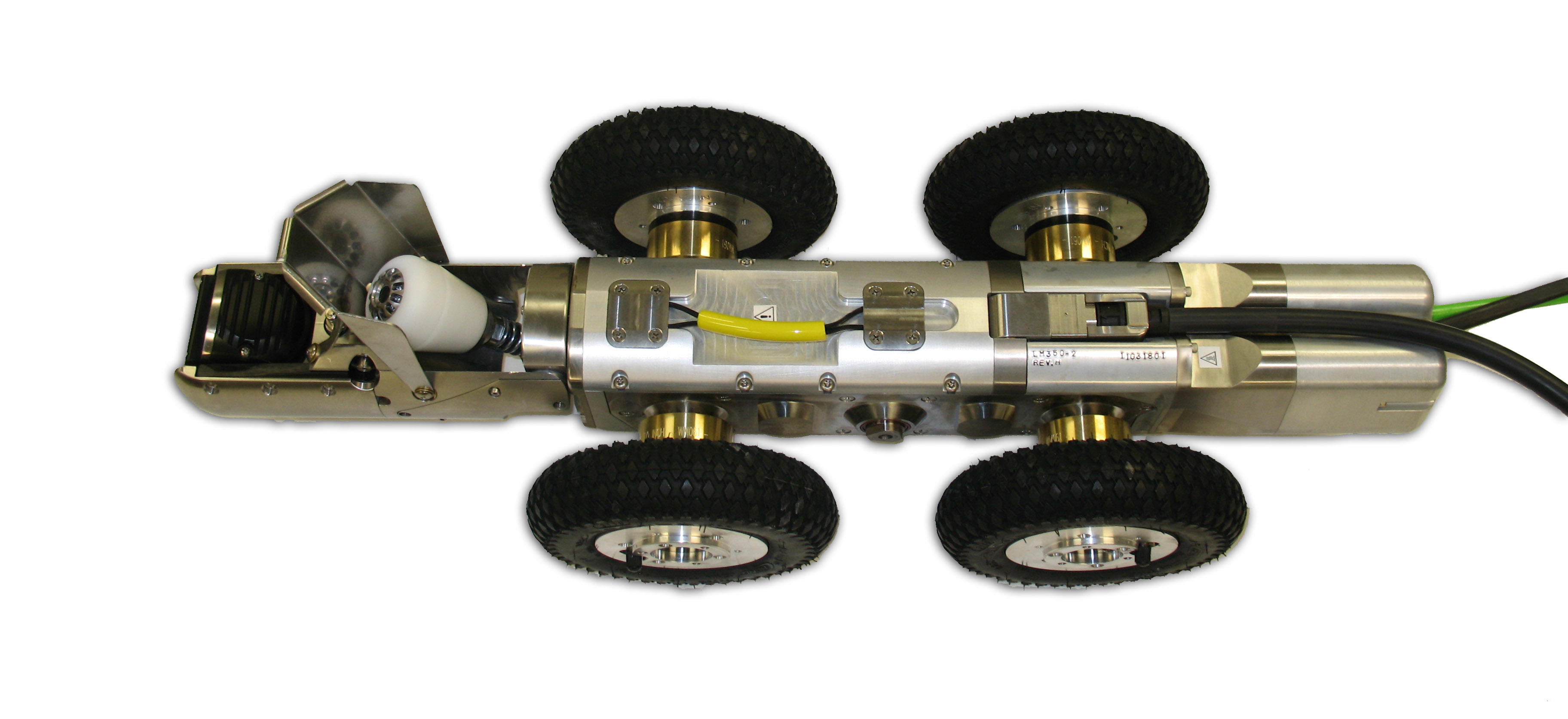

• Self-propelled camera launcher contains pan and tilt camera and lateral camera
• Low Lux Cameras - light sensitive to .3 lux at F1.2
• High Resolution Cameras - great clarity of detail
• Optional Sonde and camera locating receiver
- Lateral / Mainline Self-Propelled Camera Launcher
• Launcher is self-propelled with forward, freewheel, and powered reverse – 60 ft. per minute maximum forward speed
• Lateral camera launches, extends, and retracts at a maximum speed of 30 ft. per minute
• Displays mainline and lateral footage on screen and video tape/CD
• Launcher optically centers the camera in the pipe above most flow and debris lines
• Launcher contains variable weight extenders that increase weight (traction) and bottom clearance as the pipe diameter increases
• Launcher rotates to position lateral camera for entry, monitored by pan and tilt camera and picture in picture video display
• Robust 83 ft. combination push / video cable for lateral camera, enclosed and protected by a stainless steel sheath
• Length of the launcher with pan and tilt camera and lateral camera to include connectors is less than 37" long
- LAMP Controller
• Variable light intensity for the lateral and mainline cameras
• Rotation control for the launcher
• Joystick control of extend / retract with variable speed for lateral camera
• Joystick control of pan and tilt camera
• High voltage and over current LED indicators to protect all equipment
Lateral / Video Cable Reel
• Storage for integrated lateral / video cable
• Variable speed control with clutch for easy retrieval of integrated lateral / video cable
The self-propelled LAMP accomplishes a one pass pan and tilt inspection of the mainline ranging from 6" through 24" diameter, with a simultaneous inspection of the adjacent lateral services up to 80 ft.! Equipped with two high resolution cameras, the LAMP picture in picture feature enables the operator to monitor the pan and tilt inspection of the mainline and launch a camera from the mainline to inspect the adjacent lateral service. LAMP is used in the horizontal boring industry for precise locating of lateral services, avoiding costly damage to the existing infrastructure during the boring process. LAMP is also used to verify the quality of rehabilitation processes such as lateral and mainline relining and spot repair. The system can be mounted in a truck or retrofitted to most existing truck mounted CCTV systems.
